Flocculators Module for Ricotta

Cargando...

This system unifies two unit operations. First, the Floculator processes whey through silent steam injection and automatic adjuvant dosing in an insulated conical-bottom tank. Once the coagulum forms, the product is transferred by gravity to the Drainage Cart. This equipment is not merely a receiver; it acts as a thermal maintenance station, using hot whey in the lower compartment to prevent premature cooling and bacterial contamination. Finally, the cart feeds the product to the homogenizer through a single-screw pump with variable speed drive and an integrated lump-breaker, ensuring a consistent texture for packaging.

Transform your ricotta production through a synchronized system that eliminates critical manual handling. From precise coagulation to positive pump transport, this module ensures product standardization and superior hygiene by maintaining high temperatures throughout the process.

FLOCULATOR + DRAINAGE CART — SYNCHRONIZED PROCESS

•High-Efficiency Flocculation: AISI 304 stainless steel tanks with double-wall insulation and inspection windows designed for maximum solids precipitation with direct steam injection and complete recovery through whey recirculation.

•Optimized Drainage and Separation: The Drainage Cart features a perforated steel bed with removable panels and cloths that facilitate physical whey separation, allowing complete recovery of the coagulum generated in the floculator without handling losses.

•Thermal Barrier Against Contaminants: Unlike traditional open systems, the cart keeps the cottage cheese at high temperature using hot water at its base. This prevents bacterial load and allows hot-fill packaging to extend shelf life without preservatives.

•Controlled Positive Transfer: The cart integrates a viscous positive screw pump with a frequency drive. This allows pumping the viscous product to the homogenizer at a constant flow rate; the lump-breaker ensures no solid blockages pass through that could affect the final texture.

•Integral Sanitation (CIP): Both the floculator and drainage cart are designed for chemical in-situ cleaning, eliminating manual washing labor and guaranteeing sanitation between batches.

Flocculators Module for Ricotta

Product Video

FLOCULATOR + DRAINAGE CART — SYNCHRONIZED PROCESS

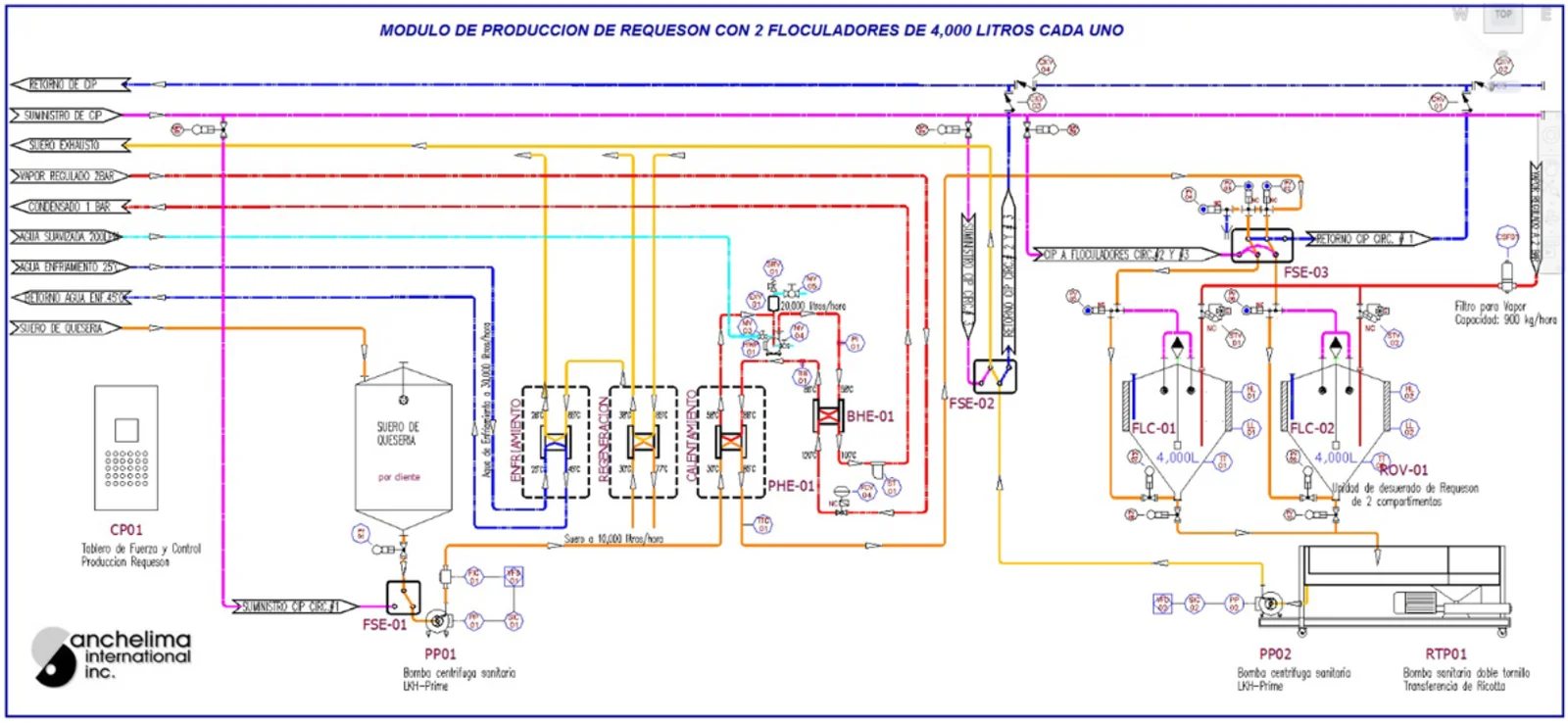

RICOTTA PRODUCTION MODULE WITH 2 FLOCCULATION TANKS OF 4,000 L

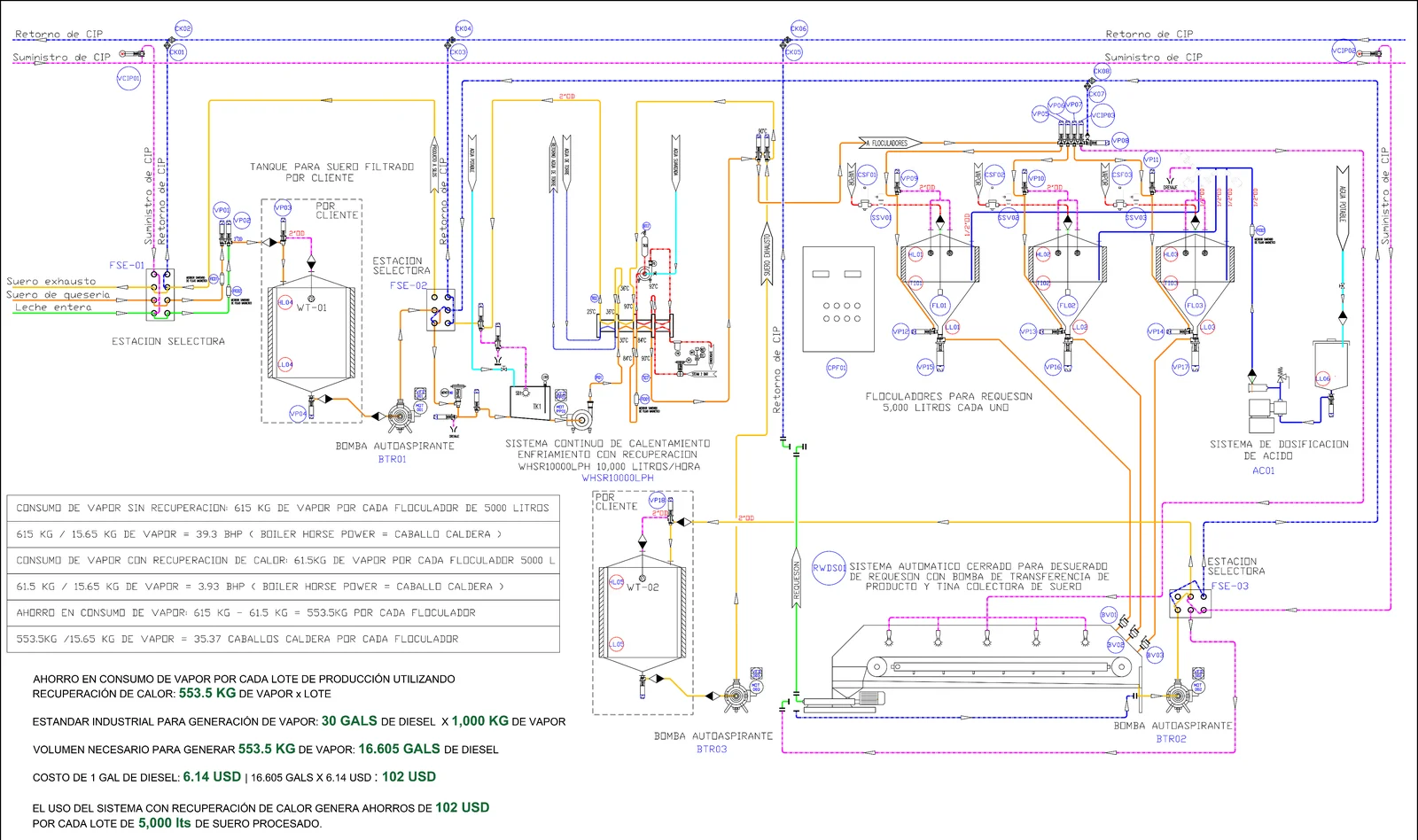

PIPING AND CONTROL SYSTEM — MODULE ENERGY BALANCE
