Double O Coagulation Vats

Designed for dairy processing plants that demand standardization, this vat transforms pasteurized milk into premium-quality curd through a "Double O" tank geometry that optimizes agitation hydrodynamics. The equipment integrates a dual cut-and-agitation system controlled by PLC, ensuring gentle curd treatment that prevents unnecessary breakage and sedimentation of fines in the whey. Its semi-hermetic, thermally insulated structure allows rigorous process temperature control, eliminating critical fluctuations and ensuring a superior hygienic environment suitable for centralized CIP cleaning.

Maximize your cheese production yield by minimizing fine particle loss and ensuring homogeneous coagulation through precision cutting engineering.

Request Quote Contact Us

Click to view gallery

Product Video

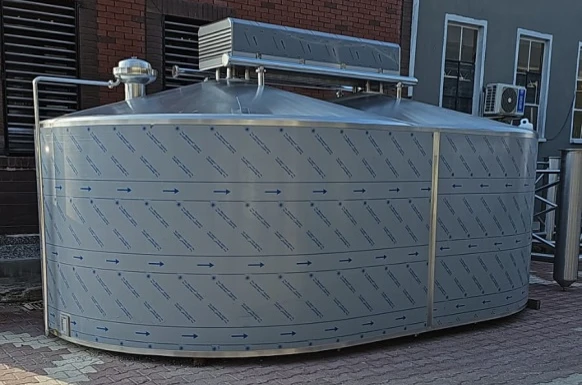

Double O Coagulation Vat — general system view

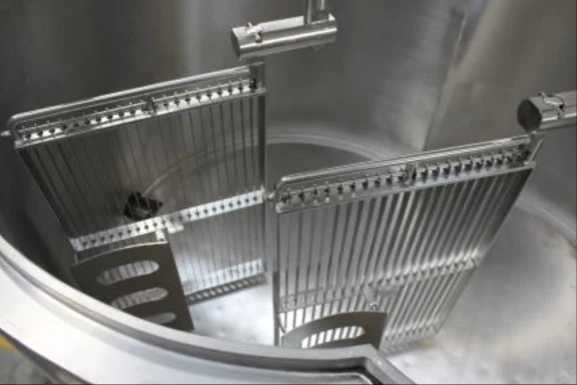

•"Double O" Geometry and Sharp Liras: Increases final product yield (Yield) by making a clean cut that drastically minimizes the detachment of fines carried away by the whey, compared to conventional systems.

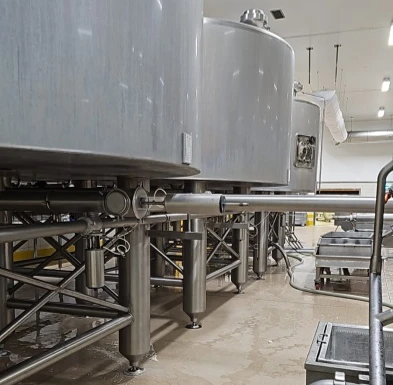

•Semi-Hermetic Sanitary Design: Prevents air exchange with the environment during coagulation, reducing the risk of cross-bacterial contamination and maintaining the thermal stability of the milk.
•PLC Automation and Control: Features an IP65-protected panel and pneumatic valves for precise management of temperature and agitation speed, guaranteeing exact recipe repeatability and consistent cheese texture batch after batch.
•CIP Integration (Clean In Place): Built entirely in T-304 stainless steel with sanitary finishes, enabling direct connection to central washing systems to ensure a sterile surface without manual disassembly, optimizing operational uptime.
•Capacity Versatility: Available in a range from 1,000 to 16,000 liters, adapting to both specialized production lines and high-volume industrial processes.

AVAILABLE MODELS

DOUBLE O COAGULATION VAT

MODEL	1,000 L	2,000 L	3,000 L	6,000 L	8,000 L	12,000 L
ID	07/00749	07/00922	07/00913	07/01073	07/00092	07/00540
Length (L)	2.25 M	2.50 M	2.70 M	3.10 M	3.55 M	4.23 M
Width (W)	1.35 M	1.70 M	1.90 M	2.20 M	2.32 M	2.83 M
Height (H)	2.15 M	2.60 M	2.80 M	3.40 M	3.50 M	4.18 M
Approx. Weight	550 KG	950 KG	1,150 KG	1,600 KG	2,000 KG	3,000 KG
Discharge	LATERAL					BOTTOM
Ø Discharge	4"
Power	0.55 KW	1.1 KW	2.2 KW	2.2 KW	3 KW	3 KW
Power Supply	220 VCA 3 PHASE 60 HZ OR 440 VCA 3 PHASE 60 HZ
