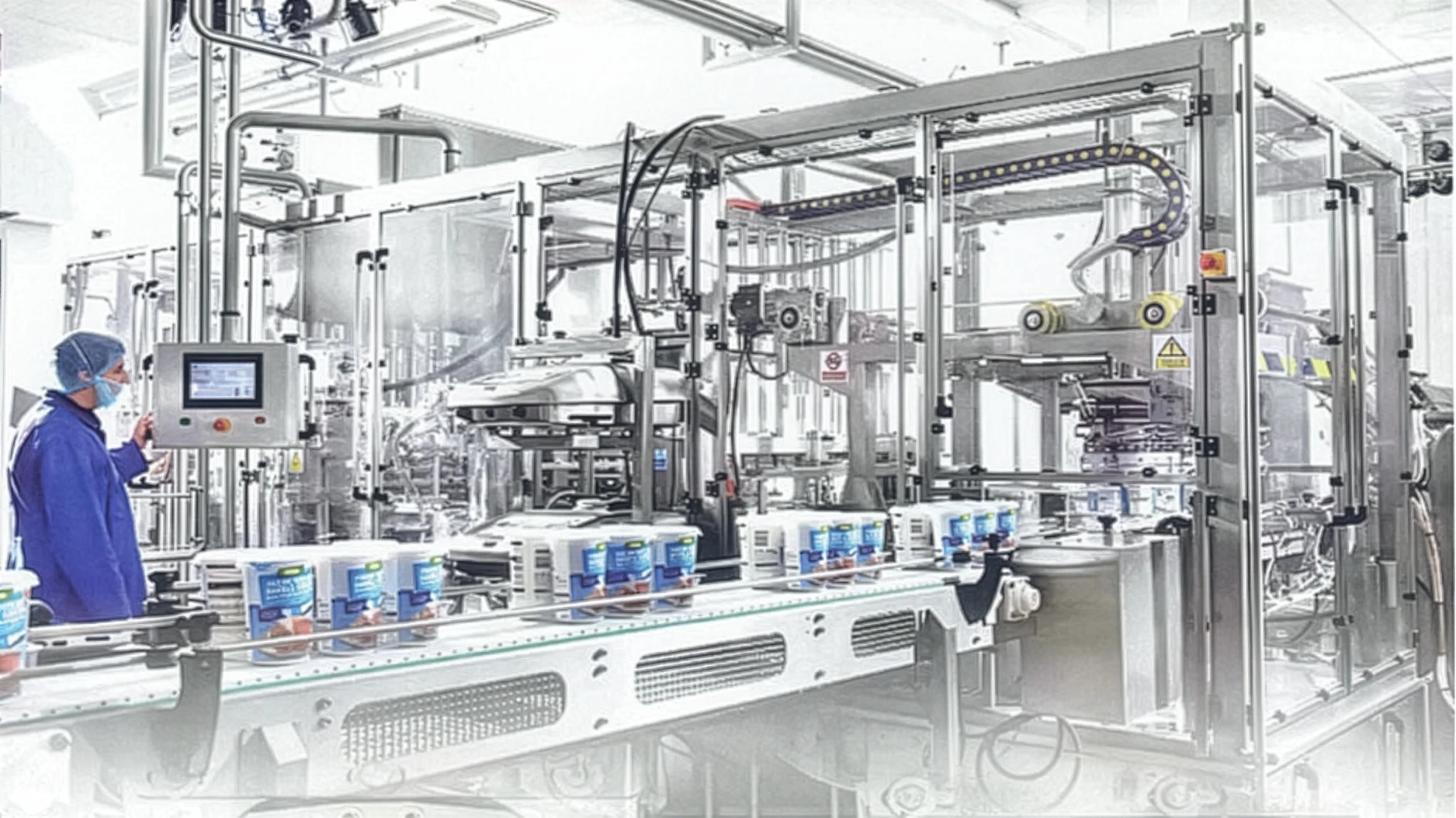

Servo‑driven linear filler for preformed cups with Ultra Clean hygiene and production up to 22,000 pcs/h The Linear Yogurt and Cream Cup Filling Machine is a servo‑motorized linear system designed to fill and seal preformed plastic cups in multi‑lane configurations. It is optimized for dairy products with varying viscosities, including stirred yogurt, cream, and spreadable cheeses, while maintaining high throughput and controlled hygienic conditions. The machine operates with an intermittent indexed motion and coordinates cup feeding, optional pre‑sterilization, dosing, and sealing in a closed, controlled environment. The filling section uses a servo‑controlled volumetric dosing system engineered to achieve a maximum deviation of ±0.5%, supporting net‑weight compliance and minimizing product giveaway. For enhanced hygienic performance, the Ultra Clean concept integrates cup decontamination using UV light and supports operation under HEPA H14 laminar flow to maintain positive pressure and reduce airborne contamination risk during filling. The system is scalable from 4 to 12 filling nozzles, delivering production ranges from 4,000 to 22,000 containers per hour, depending on product characteristics and format. A full CIP-ready design supports automated cleaning of product circuits and balance tanks, while sealing can be configured for pre‑cut aluminum foil membranes and/or snap‑on lids, ensuring hermetic closure and consistent final presentation. Key benefits • High output with servo‑controlled dosing accuracy (±0.5%) • Ultra Clean hygienic architecture with UV and optional HEPA H14 laminar flow • Scalable multi‑lane design (4–12 nozzles) for up to 22,000 pcs/h • Reduced product giveaway and improved regulatory net‑content compliance • CIP integration for repeatable, validatable sanitation
