Rotary Filler and Sealer for Butter or Margarine in Tubs

Versatile packaging solution that maximizes operational profitability by combining high dosing precision with the flexibility to switch between multiple presentation formats (100 g – 1,000 g) without sacrificing production speed.

This equipment operates through a cyclic rotary system optimized for products of pasty consistency, integrating smoothly into existing production lines. The equipment receives the product (butter, margarine or spreads) either via a hopper with augers or by direct feed from the process line, maintaining the ideal inlet temperature (between +8°C and +16°C) to preserve texture. Through a volumetric system, it doses with precision into plastic (PP) containers of various geometries, proceeding to thermal sealing with aluminum or plastic lid, delivering up to 40 units per minute ready for boxing.

Request Quote Contact Us

Rotary Filler and Sealer for Butter or Margarine in Tubs

Click to view gallery

Product Video

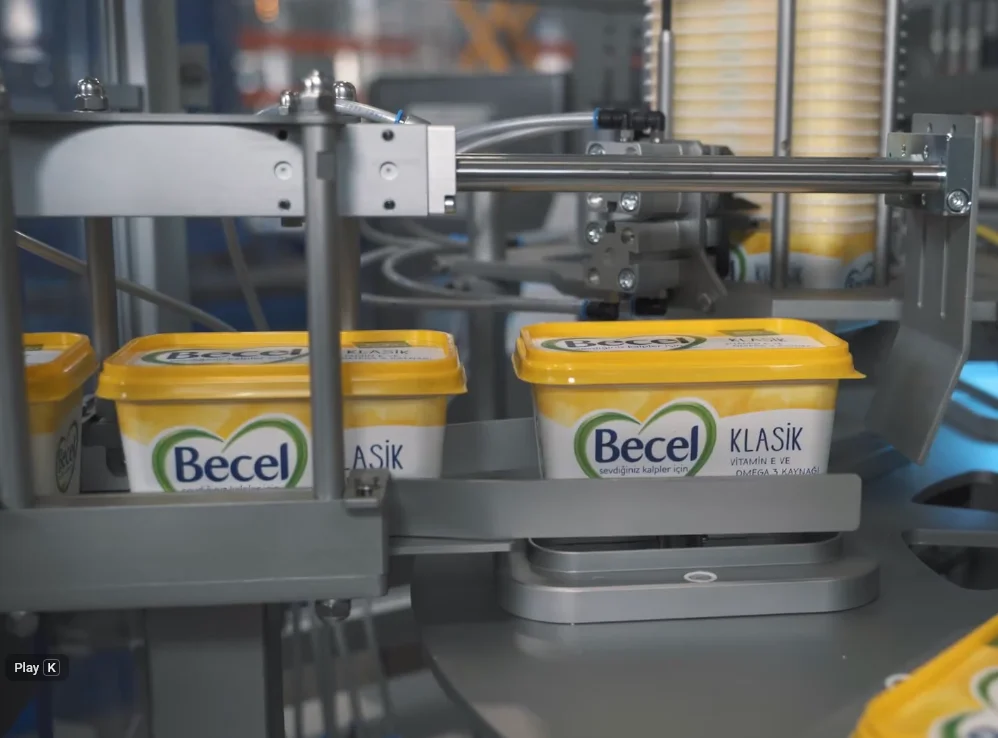

FEATURES AND ADVANTAGES

Rotary Tub Filler and Sealer

•Format and Weight Versatility: Accepts rectangular, square and round containers; weight per batch is changed by adjusting the piston height with no parts replacement.
•Dosing Precision (Loss Control): Stainless steel volumetric system with ±2% precision, reducing product losses and guaranteeing the declared net weight in every container.
•Sanitary Integrity and Safety: CE certification, stainless steel covers and UV irradiation lamp on the product to ensure hygiene throughout the packaging process.
•Automation and Ease of Operation: PLC control with touchscreen HMI, position sensors and pneumatic compensators for precise and reproducible operation.
•Production Adaptability: Capacity of up to 40 pcs/min for 100–250 g formats and up to 15 pcs/min for formats up to 1 kg, adapting to the requirements of each line.

TECHNICAL SPECIFICATIONS

Technical Specifications

Machine typeRotary, continuous operation

Max. Capacity 100–250 gUp to 40 pcs/min

Max. Capacity 300–500 gUp to 25 pcs/min

Max. Capacity 750–1,000 gUp to 15 pcs/min

Packaging materialPreformed plastic containers

Product inlet temperature12 – 16 °C (54 – 61 °F)

WashingManual

Compressed air supply0.23 m³/min @ 5 – 6 Bar

Rated power10.6 kVA

Electrical supply220 VAC or 460 VAC, 60 Hz, 3-phase

Machine dimensions4,530 × 2,387 × 2,330 mm (L × W × H)

Approximate machine weight1,250 kg

Technical specifications of the rotary tub filler and sealer
