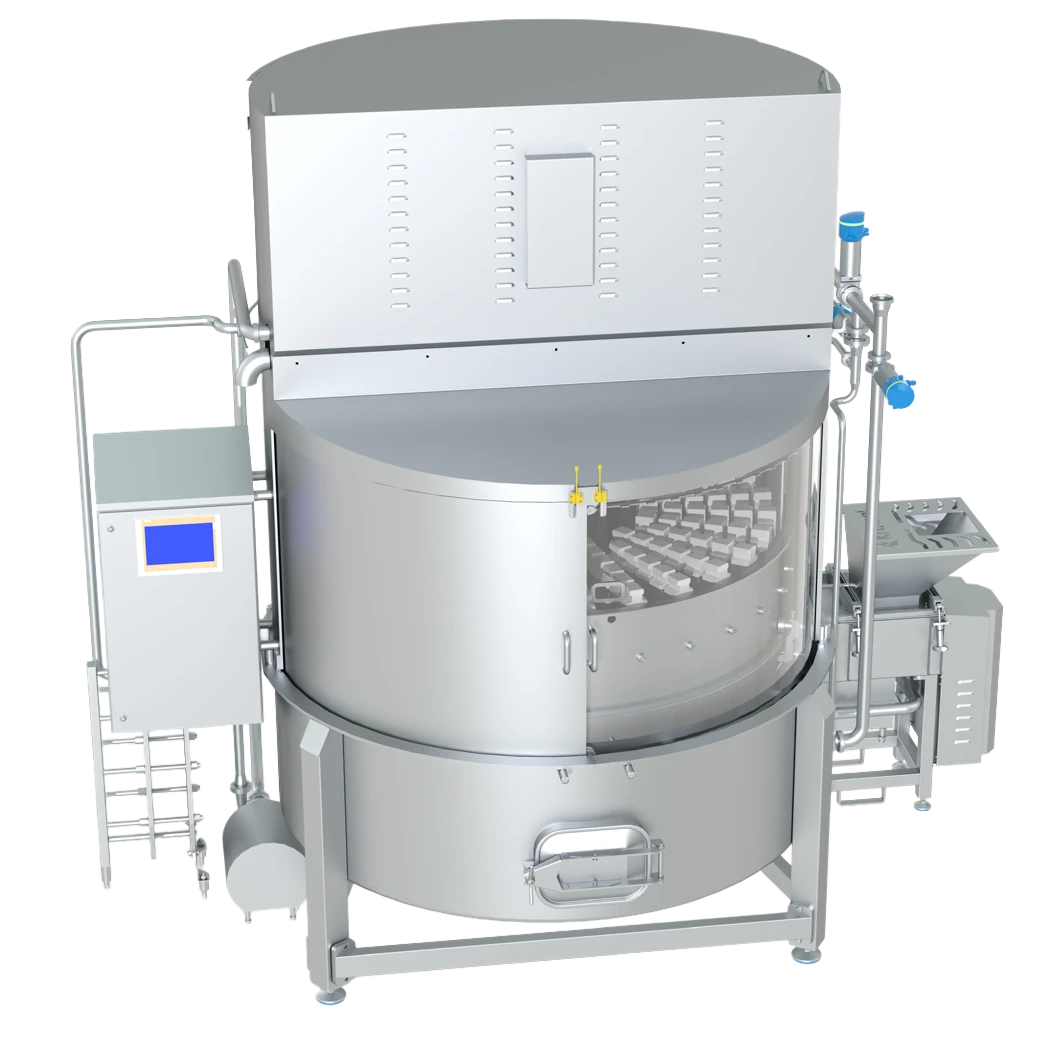

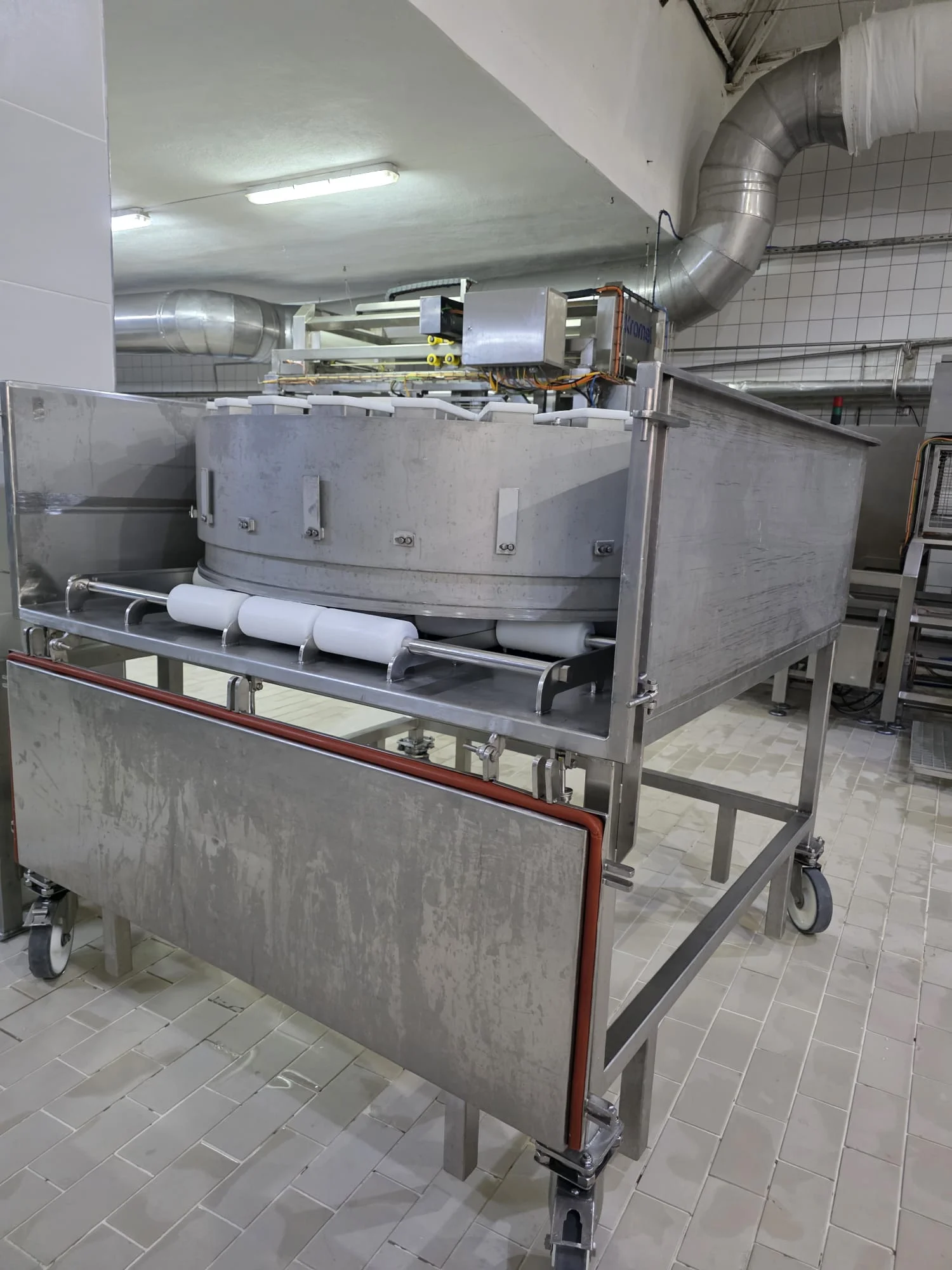

Rotary Molder with Pre-Cooling

Cargando...

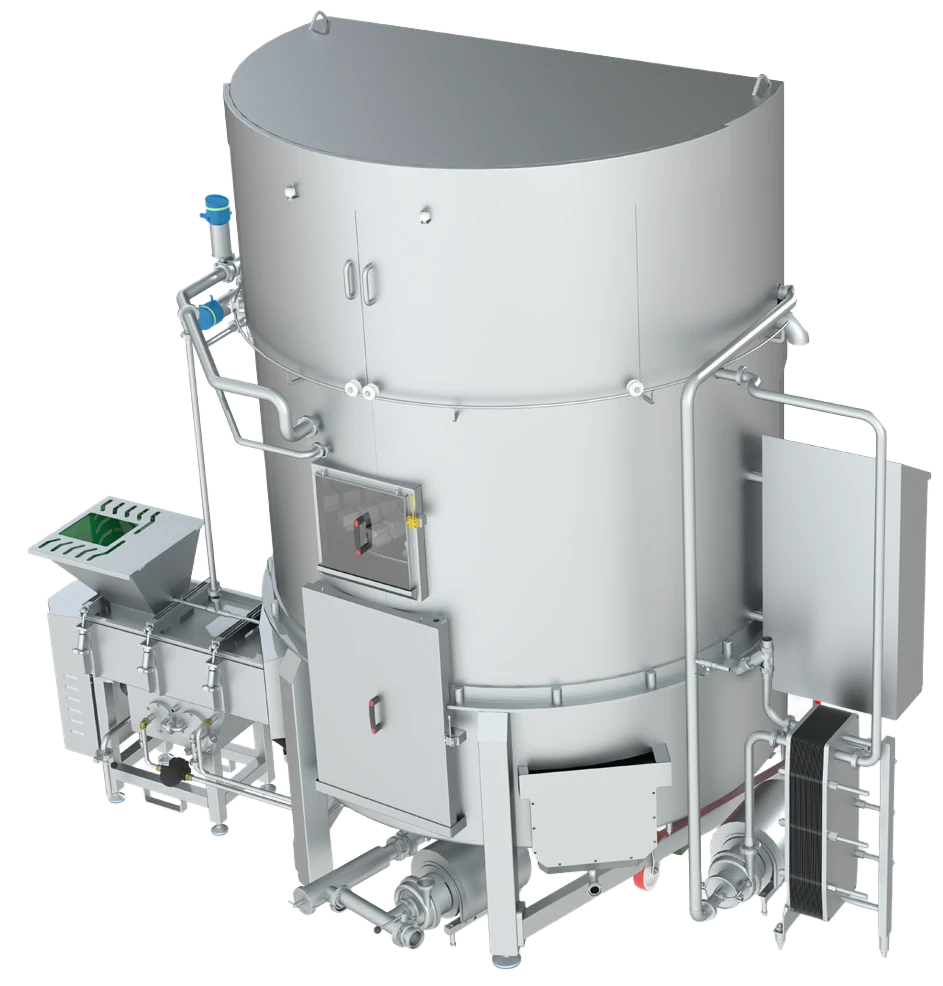

The Rotary Molder with Pre-Cooling receives pasta directly from the stretcher. Screw conveyors drive the product into the rotary head where carousel molds define the exact shape and weight. During table rotation, the product undergoes controlled thermal exchange through a cold water circulation system with integrated pump and heat exchanger. The pre-hardened product is discharged directly into the brine or cooling tank to complete thermal stabilization.

Ensure food safety and line profitability through exact volumetric molding that eliminates manual handling, reduces cleaning downtime with the integrated CIP system, and protects equipment integrity with ergonomic format-change accessories.

ROTARY MOLDER WITH PRE-COOLING

•Superior-Grade Sanitary Construction: The main body and screw chamber are made of AISI 316 stainless steel, while the rest of the structure is AISI 304. Contact surfaces feature Teflon coating or sandblast treatment to prevent product adhesion and facilitate flow.

•Integrated CIP (Clean-In-Place) System [Optional]: Allows automatic head cleaning without disassembly or manual operator intervention. This ensures consistent and validatable hygiene, drastically reduces downtime between batches, and minimizes the risk of cross-contamination and workplace accidents.

•Format Versatility and Ergonomic Maintenance: The machine accepts interchangeable heads to produce cylindrical, rectangular, or parallelepiped formats. To streamline this task, a Head Transport Cart is offered, designed for safe handling that prevents damage to molds and physical risks to personnel during format changes.

•Automated Process Control: Managed via PLC, the unit provides automatic weight adjustment and precise process temperature control. This ensures high grammage accuracy, reducing overweight waste ("giveaway").

•Ideal Applications: Mozzarella Cheese • Analog Cheeses • Cheddar and Asadero Cheese

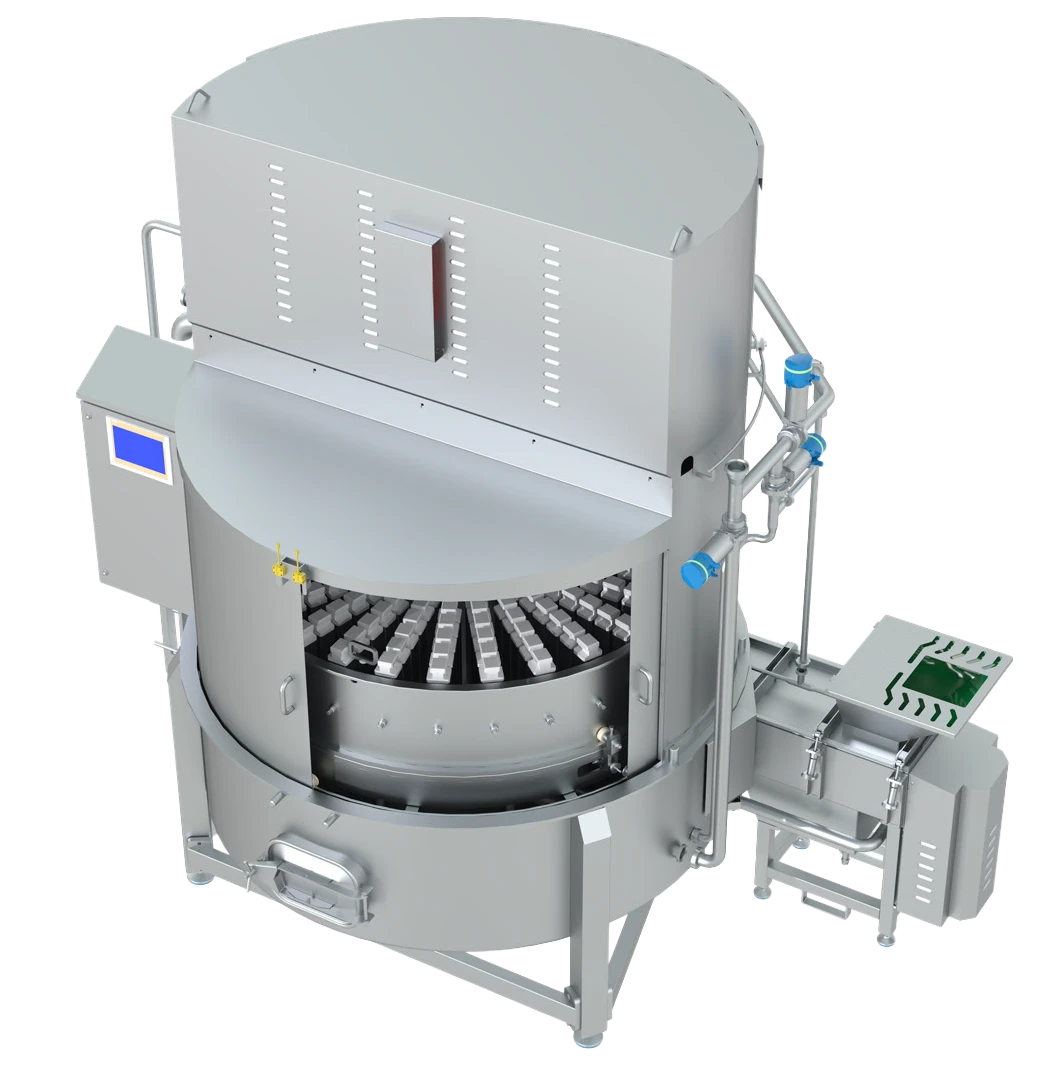

INTEGRATED CIP SYSTEM FOR MOLDING HEAD

The rotary molding machine features a fully integrated CIP (Clean-In-Place) cleaning system. This system performs automatic cleaning without disassembly or manual intervention, delivering key operational benefits:

•Time savings: The cleaning process is carried out quickly between batches, reducing downtime and increasing productivity.

•No manual intervention: The operator does not need to disassemble or intervene with the head, improving safety and reducing the risk of contamination.

•Guaranteed hygiene: Uniform and validatable cleaning that meets the highest sanitary standards in the dairy industry.

•Greater machine availability: By eliminating manual processes, the machine is ready to produce more and better, in less time.

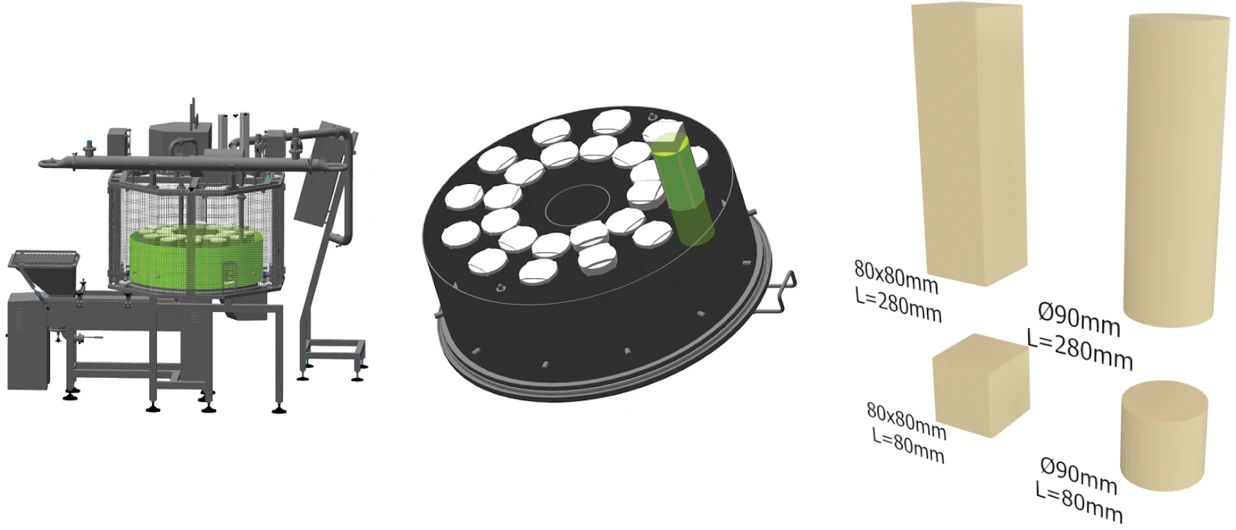

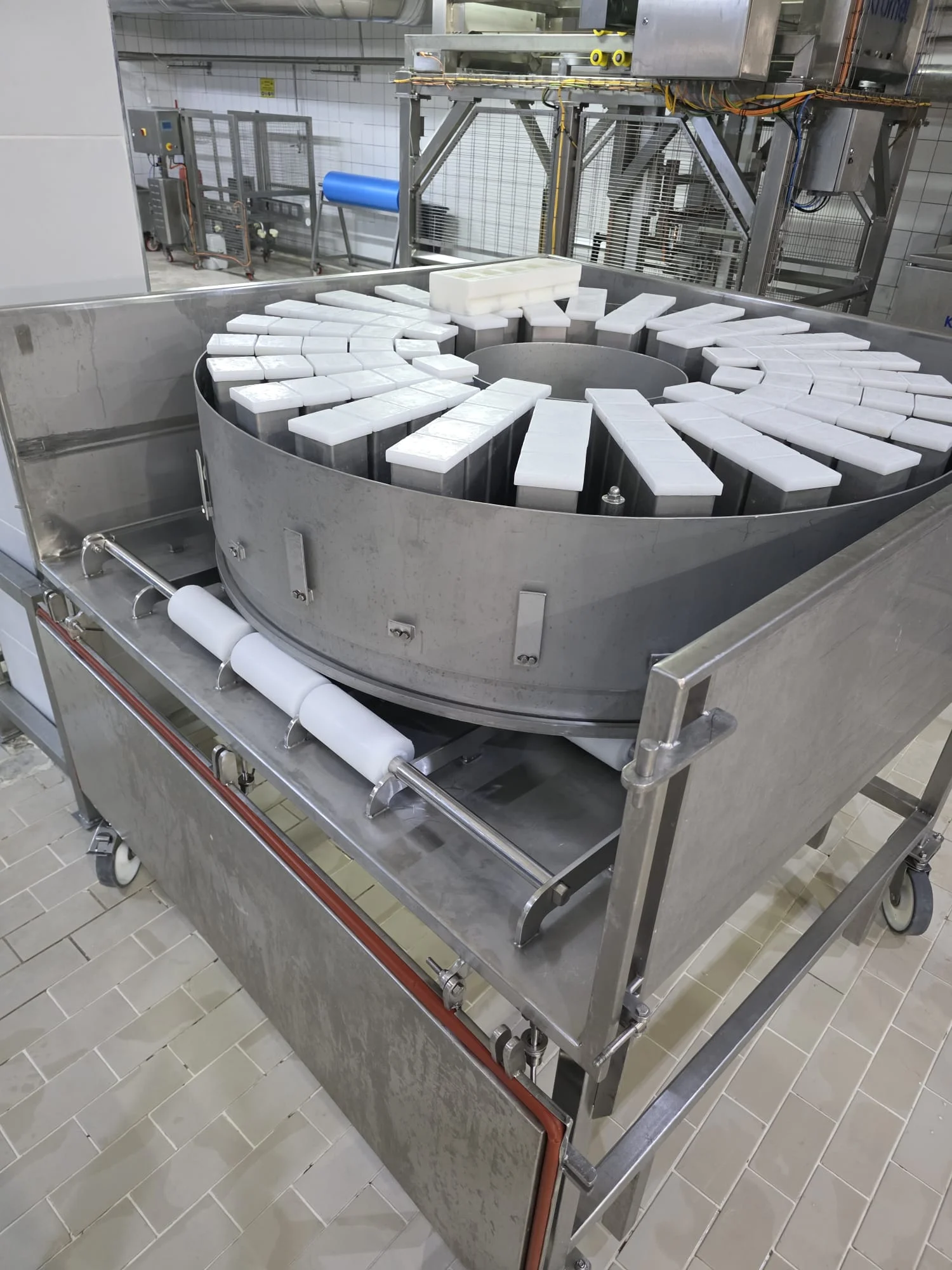

ADDITIONAL MOLDING HEADS

Thanks to its interchangeable rotary molding heads, the machine enables quick format changeovers —such as parallelepiped and cylindrical shapes— without lengthy adjustments or downtime.
