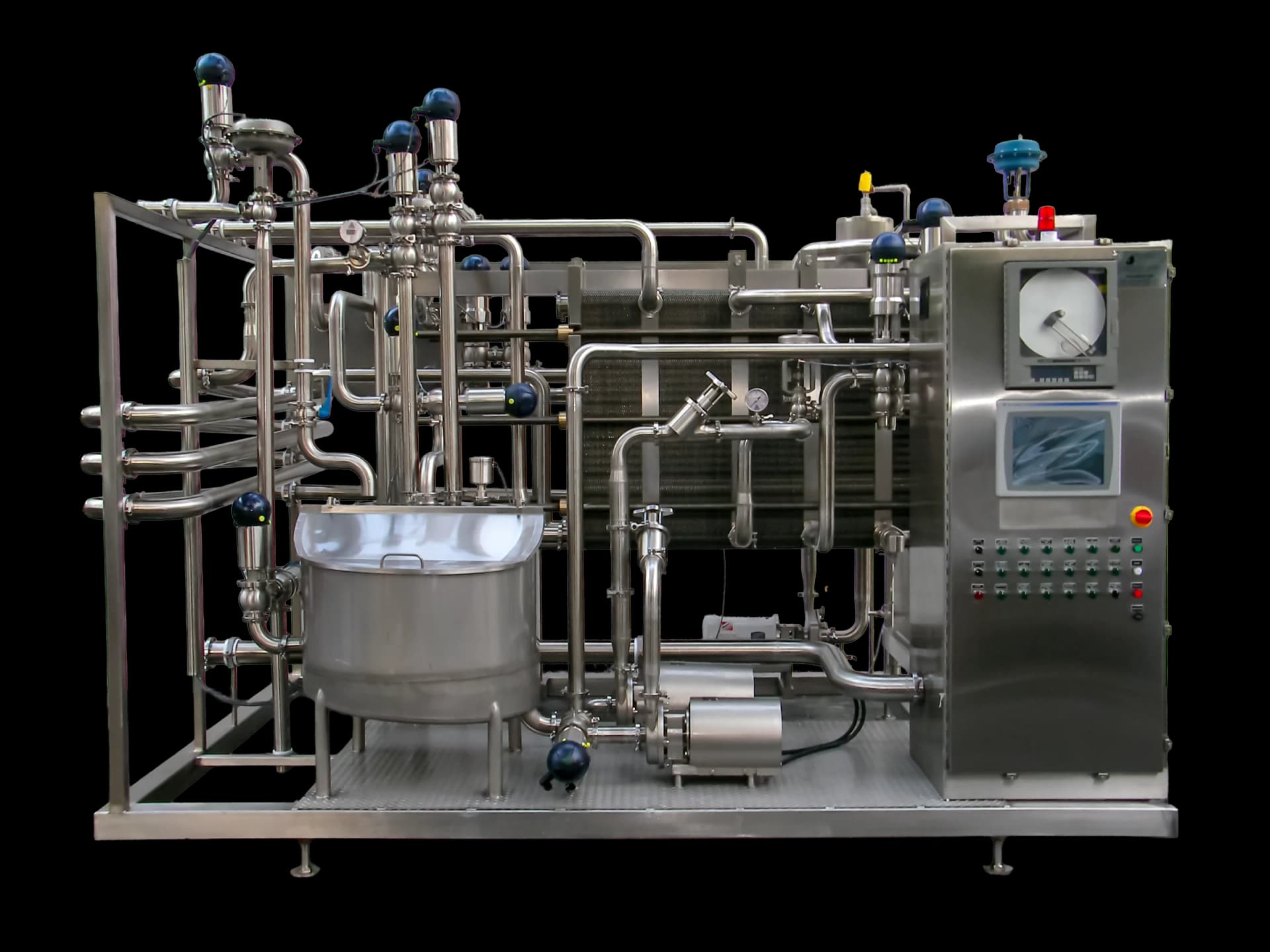

International HTST Pasteurizer Thermoplak™

Cargando...

World-class engineering and maximum thermal efficiency optimized for global markets.

World-Class Engineering & Maximum Thermal Efficiency Optimized for Global Markets. The International Thermoplak™ is a high-efficiency thermal treatment system that replicates the elite thermodynamic engineering of our PMO model. It is specifically optimized for markets that prioritize high performance and component quality without the specific administrative regulatory requirements of the U.S. PMO. Performance & Efficiency (Rendimiento): This system is built for producers who demand high throughput and significant utility savings through advanced heat recovery. System Throughput: Scalable configurations from 530 – 13,200 GPH (2,000 – 50,000 L/hr). Thermal Regeneration: Achieves a powerful 90% regeneration rate. Note: This high level of thermal recovery ensures that up to 90% of your energy is recycled within the process, drastically lowering the load on your boiler and cooling plant compared to standard international units. HTST (High Temperature Short Time): We guarantee food safety by heating the product to 72°C for 16 seconds, eliminating pathogenic bacteria such as Salmonella, Listeria and E. coli, while preserving flavor, nutrients, natural freshness and functional properties. Applications: Fluid milk, milk for cheese, yogurt, whey, and ice cream mixes.

APPLICATIONS

Fluid milk, cheese milk, yogurt, whey, ice cream mixes.

KEY ADVANTAGES

Cost-Benefit Ratio: Lower initial investment by eliminating legal instrumentation not required locally.
Robustness: Uses the same heat exchange principles and premium components as the PMO version.
Flexibility: Modular design and PLC automation adapted to multiple products.

HTST (HIGH TEMPERATURE SHORT TIME) — OUR GUARANTEES

Food safety: The product is heated to 72 °C for 16 seconds, eliminating pathogenic bacteria such as Salmonella, Listeria and E. coli.

PRODUCT QUALITY: Minimal heat exposure, preserving flavor, nutrients, natural freshness, and functional properties.

PROCESS EFFICIENCY: Up to 90% energy savings through heat recovery. Continuous process, without large tanks or dead times. Lower operating costs and higher productivity.

FULLY ASSEMBLED AND MOUNTED ON PLATFORM AS A MODULAR UNIT: Reduces installation time and cost. Simplifies relocation within the plant. Allows for greater resale value.

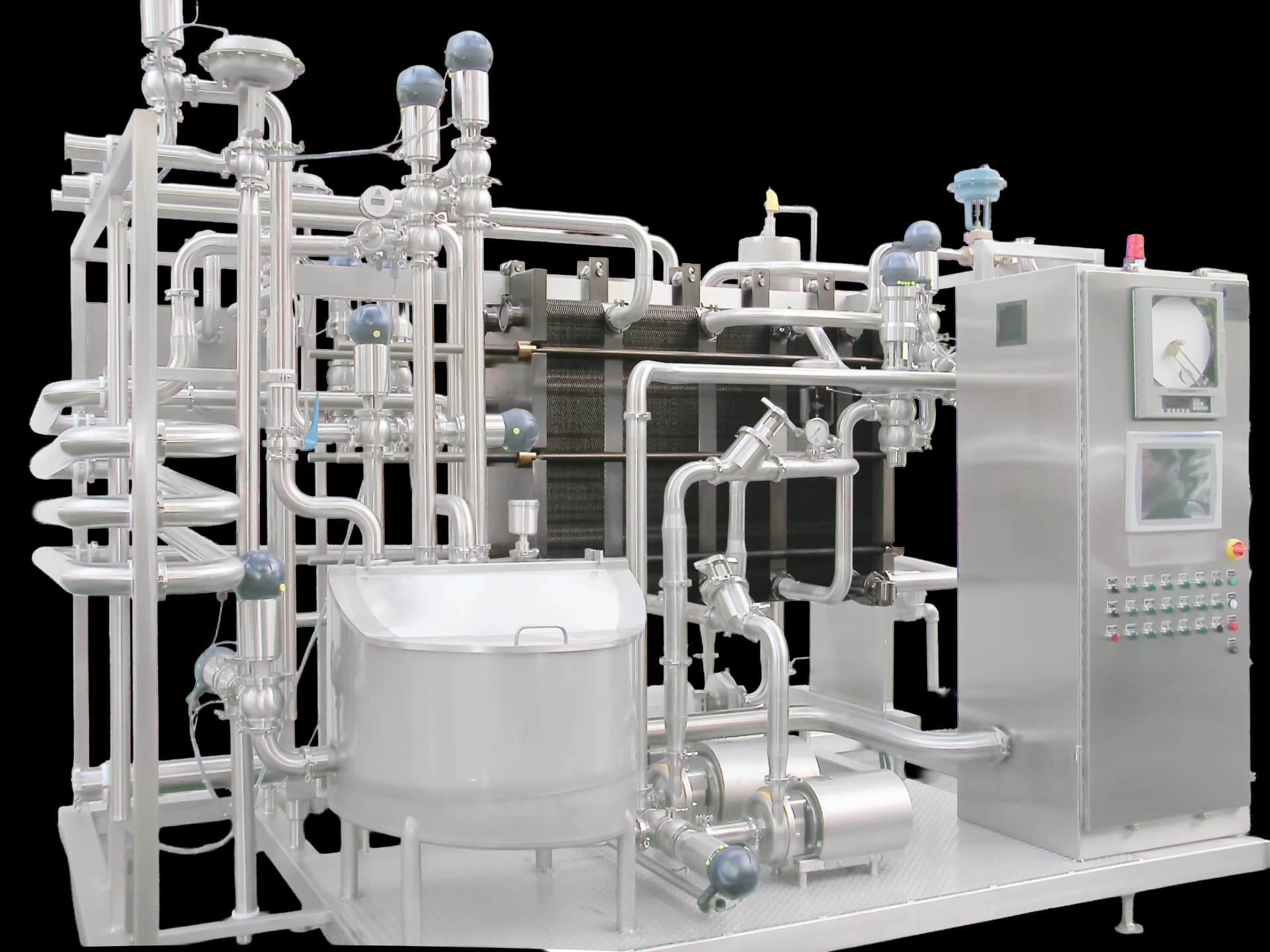

MAXIMIZING HEAT EXCHANGE

Energy Savings (90% Regeneration): We reuse the energy of the pasteurized product to heat the incoming raw product, reducing steam consumption to the minimum technically possible.

Product Protection: The precise control system maintains heating water temperature just a few degrees above pasteurization temperature. This gradual heating prevents product scorching on the plates, guaranteeing superior flavor and extended continuous operation hours.

International HTST Pasteurizer Thermoplak™

HTST (HIGH TEMPERATURE SHORT TIME) — OUR GUARANTEES

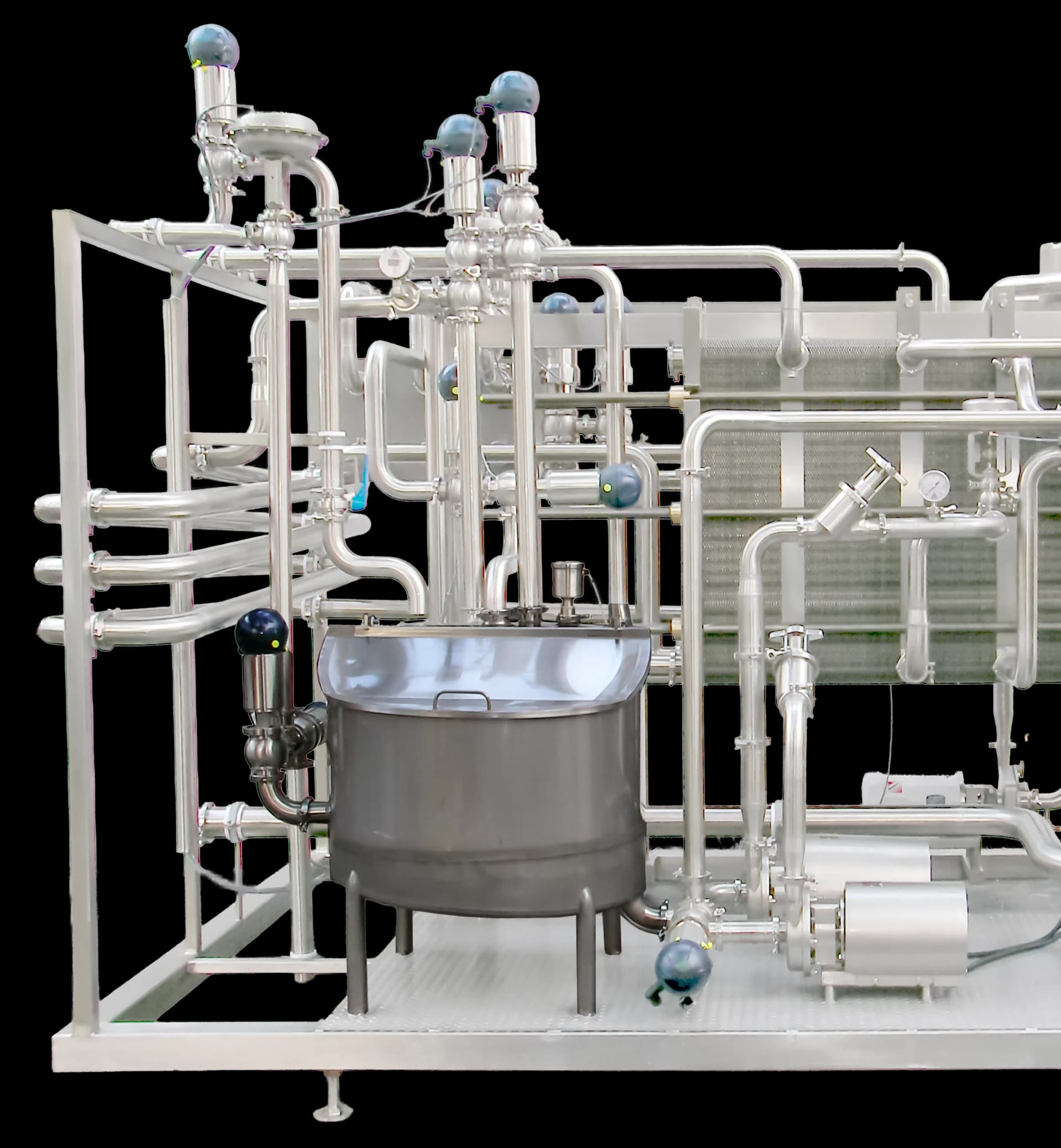

BALANCE TANK

MAXIMIZING HEAT EXCHANGE
